Flange Nut

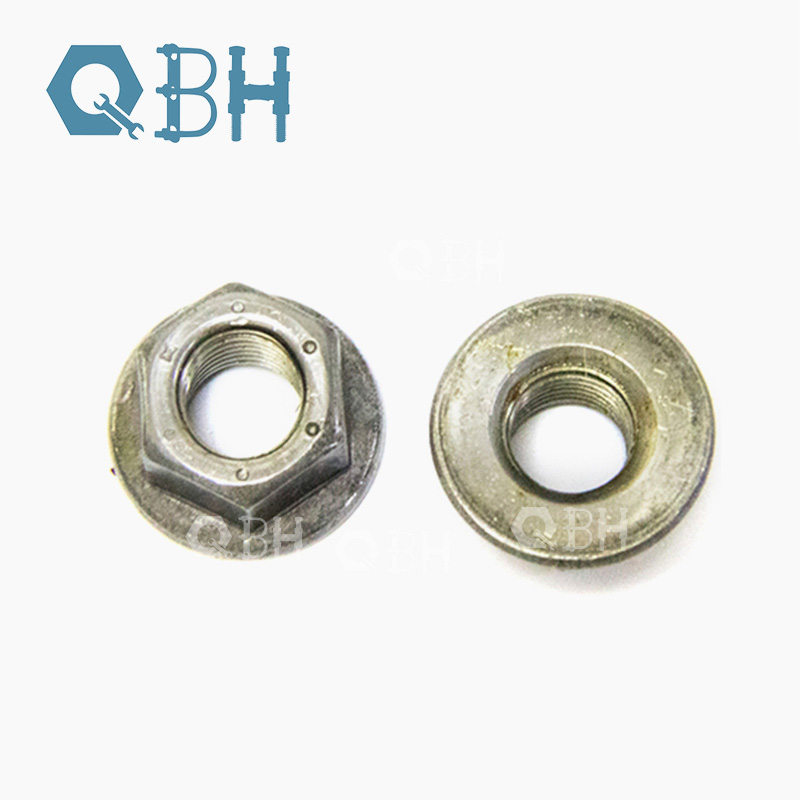

DIN6923 Zinc Plating Hex Flange Nut

DIN6923 Zinc Plating Hex Flange Nut provide a secure and tight fit, while also preventing the nut from loosening due to vibration. This is especially important in industries where machinery and other heavy equipment are used, as any loosening of fittings can cause dangerous and costly consequences. The flange of DIN6923 Zinc Plating Hex Flange Nut acts as a washer, providing additional support while preventing the nut from embedding itself into the surface of the material being fastened. This greatly reduces the risk of damage to the structure, as well as providing a more aesthetically pleasing finish.

DIN6923 Zinc Plating Hex Flange Nut provide a secure and tight fit, while also preventing the nut from loosening due to vibration. This is especially important in industries where machinery and other heavy equipment are used, as any loosening of fittings can cause dangerous and costly consequences. The flange of DIN6923 Zinc Plating Hex Flange Nut acts as a washer, providing additional support while preventing the nut from embedding itself into the surface of the material being fastened. This greatly reduces the risk of damage to the structure, as well as providing a more aesthetically pleasing finish.

Product Details

Product Introduction
Hexagon flange nuts manufactured to DIN 6923 with a zinc-plated carbon steel base. The integrated flange serves as an inseparable load-distributing washer, while serrations on the bearing face bite into the mating surface to resist vibration-induced loosening. The design eliminates the need for a separate flat washer and reduces assembly part count. Standard diameters M5 through M20 are supplied in metric coarse thread.

Material & Mechanical Properties
Cold-formed from carbon steel and tempered for property classes 8, 10, and 12 under ISO 898-2. Proof load and hardness are certified by lot, with traceability to the heat. When matched with bolts of equivalent or higher property class, the nut carries the full proof stress of the bolt assembly without thread stripping.

Geometry & Thread
Internal ISO metric coarse thread per ISO 724. The external hexagon conforms to standard wrench openings. The serrated flange face penetrates paint and surface films during tightening, creating a positive mechanical lock against rotation. The enlarged flange footprint distributes clamp force and prevents embedment into softer structural materials.

Corrosion Protection
Zinc electroplated with clear passivation, applied per ISO 4042/ASTM B633. The zinc layer provides sacrificial cathodic protection for the underlying steel. This finish is suitable for indoor installations and sheltered outdoor environments. For more aggressive atmospheric conditions, zinc-nickel, zinc flake, and hot-dip galvanized alternatives are specified.

Application Suitability
Heavy machinery, engine sub-assemblies, conveyor systems, structural steelwork, and general industrial equipment where vibration and dynamic loads make nut retention critical. Compatible with hex head bolts, socket head bolts, carriage bolts, and other externally threaded fasteners. The one-piece flanged nut simplifies assembly and ensures consistent preload reliability.

Technical Parameters

Place of Origin CHINA
Standard DIN6923 Zinc Plating Hex Flange Nut
HS CODE 7318160000
Brand Name QBH
Certification ISO9001
Material 35K, 40Cr, 35CrMo, SCM435, etc.
Size M3-M90
Production Process Cold forging and hot forging
Class 4/ 6/ 8/ 10
Delivery Time Within 30 Days

Product Introduction
Hexagon flange nuts manufactured to DIN 6923 with a zinc-plated carbon steel base. The integrated flange serves as an inseparable load-distributing washer, while serrations on the bearing face bite into the mating surface to resist vibration-induced loosening. The design eliminates the need for a separate flat washer and reduces assembly part count. Standard diameters M5 through M20 are supplied in metric coarse thread.

Material & Mechanical Properties
Cold-formed from carbon steel and tempered for property classes 8, 10, and 12 under ISO 898-2. Proof load and hardness are certified by lot, with traceability to the heat. When matched with bolts of equivalent or higher property class, the nut carries the full proof stress of the bolt assembly without thread stripping.

Geometry & Thread
Internal ISO metric coarse thread per ISO 724. The external hexagon conforms to standard wrench openings. The serrated flange face penetrates paint and surface films during tightening, creating a positive mechanical lock against rotation. The enlarged flange footprint distributes clamp force and prevents embedment into softer structural materials.

Corrosion Protection
Zinc electroplated with clear passivation, applied per ISO 4042/ASTM B633. The zinc layer provides sacrificial cathodic protection for the underlying steel. This finish is suitable for indoor installations and sheltered outdoor environments. For more aggressive atmospheric conditions, zinc-nickel, zinc flake, and hot-dip galvanized alternatives are specified.

Application Suitability
Heavy machinery, engine sub-assemblies, conveyor systems, structural steelwork, and general industrial equipment where vibration and dynamic loads make nut retention critical. Compatible with hex head bolts, socket head bolts, carriage bolts, and other externally threaded fasteners. The one-piece flanged nut simplifies assembly and ensures consistent preload reliability.

Technical Parameters

Place of Origin CHINA
Standard DIN6923 Zinc Plating Hex Flange Nut
HS CODE 7318160000
Brand Name QBH
Certification ISO9001
Material 35K, 40Cr, 35CrMo, SCM435, etc.
Size M3-M90
Production Process Cold forging and hot forging
Class 4/ 6/ 8/ 10
Delivery Time Within 30 Days
FAQ

1. How do you let me trust you.

Jiaxing City Qunbang Hardware Co.,ltd hs its own right of import and export,QBH trademark in China,United States,European Union have been registered.At the same time,you can also check the registration information of our company in the China industry and Commerce system.



2. How about your price.

We will be based on different markets,for different quality and quantity,tailor-made prices for customers,in order to achieve win-win goal.



3. How do you control your quality.

Incoming quality contral( IQC)→Process Quality control(PQC)→Output quality control(OQC),and the random samples is sent to TUV for testing.If the customer received the goods and found quality problems,QBH company promises to be responsible for returning money or replenishing the goods



4. Could you provide free samples?

For new customer, We can provide free samples for standard fastener, But the clients will pay the express

charges. For old customer, We will send you free samples and pay express charges by ourself.



5. What is your packing.

Usually 25KG/carbon,36CTNS on the pallets,or 20-30kg/Bags,then on the pallet,QBH company personalized packagingis also available,like 10PCS/plastic bag or 10pcs/box,it can print some information

such as LOGO and pattern of customers.



6. What is your payment term

Normally,our terms of payment are TT and L/C,if we cooperate for a long time,we can reach the point of mutual trust,and fully support our customers to become bigger and stronger in the local market.Not only in the price concessions,but also in the payment can also be made on credit,Specific credit sales time needs to be negotiated separately.
